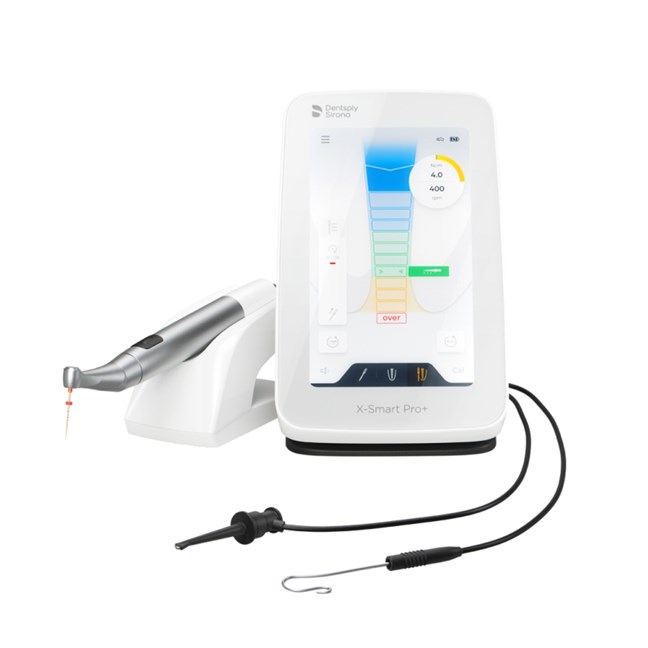

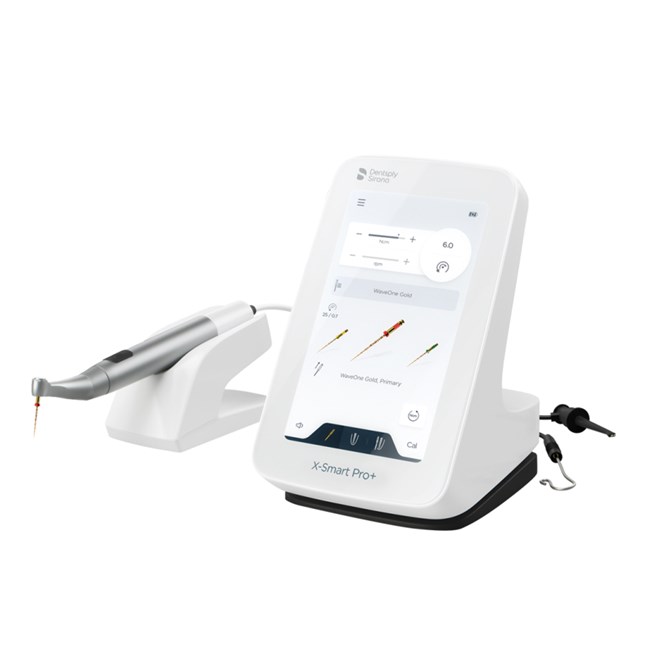

With up to 7.5 N·cm and 3,000 rpm, the X-Smart Pro+ endo motor optimizes performance of Dentsply Sirona’s endodontic file systems in both continuous rotation and reciprocating modes. The integrated apex locator gives you confidence for an accurate shaping experience. The touchscreen interface provides easy access to ideal settings for the files you choose, with upgradeable firmware to accommodate tomorrow’s treatments.

Genuine Reciprocating Motion

Fine-tuned reciprocating motion with precise angulation, acceleration and speed for simplicity, safety and reliability.

Abundant Power

Dedicated power and torque for optimal performance accross a full range of anatomies.

Precise Speed Control At Low Torque

Constant, stable speed control at low torque for improved procedural control.

Patented Brushless DC Motor Control

Unlike the periodic feedback of brush and sensor-based motor control, X-Smart® Pro+ features a patented sensorless system for 360° speed and torque feedback, enabling quicker reaction times for stable file settings.

The patented brushless DC motor control responds fast to torque. Stabilizing the motion ensures optimal file performance.

The Dynamic Accuracy™ technology allows for direct length determination while actively shaping, with auto-reverse function to keep your file on your desired target.

Technical Specifications:-

• Reciprocating and rotary motions
• Includes file library with preset programs for WaveOne® Gold, ProTaper Ultimate™, TruNatomy®, - RECIPROC® family, and VDW.ROTATE® endodontic file systems
• Customizable file sequences, compatible with other endodontic files and instruments
• Auto-reverse rotation at preset torque limit and at doctor’s desired working length
• On/Off button on the motor handpiece or optional wireless footswitch
• Calibration function (CAL) for precise torque setting
• 7˝ touchscreen interface
• Mini contra-angle with integrated 10-Lumen LED
• 360° adjustable position
• Lithium-ion battery
• Autonomous operation through a full day of work (10 treatments of 2 canals with 4 files per canal)
• Fully recharged in only 1.5 hour
• Motor can be run on battery only or can be recharged during treatment
• Universal charger (voltage 110–240, 50/60 Hz)
• Torque range: 0.2 N·cm – 7.5 N·cm
• Speed range: 100 rpm – 3,000 rpm
• Fully autoclavable handpiece sheath and contra-angle
• Upgradeable via Wi-Fi

X-Smart® Pro+ Endo Motor with Integrated Apex Locator, Mini Contains:- Contra Angle with Integrated LED, 360° Adjustable Postion Stainless Steel Handpiece Sheath, Magnetic Handpiece Holder, Accessories Box (charger with universal power adapters), Lip Clip, File Clip, Y-Connector Cable
