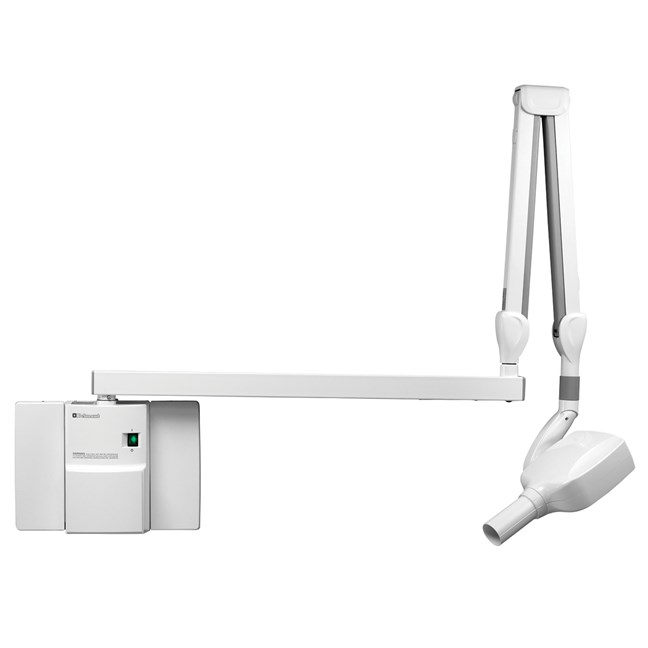

The 097 Intra-Oral X-Ray Unit brings an improved user interface which is simple to operate safely. Radiographer can use the adult/adolescent/child presets or manually override these settings for more challenging exposures. The well-reputed balance-arm provides excellent stability and reach with zero-drift – assisting with providing the sharpest possible image. The 097 conveniently switches between film and digital imaging systems at the push of a button. At the 097’s control panel, the Radiographer can access an improved, expansive range of exposure settings (0.02 to 3.2 seconds) and be assured of excellent image results.

Keypad control panel key features:

• Lockable keypad
• Manual override
• Easy-clean single piece membrane

097 Belray II key features:

• Safety-conscious technologies
• Zero-drift balance-arm
• Simple operation
• Digital and film compatible
• Adult/adolescent/child presets
• Cone length options
• Handheld exposure switch
• Easy-clean, smooth surfaces
• Rectangular Collimator
• Lockable keypad
• Manual override

Technical features:-

• Tube voltage 70 kV
• Tube current 4mA or 7mA
• Focal spot 0.7mm
• Exposure time 0.02 to 3.2 seconds
